Specs

Type:

ECM
Product Type:

Motor
Voltage:

208/230v
Amperage:

0.63
Rotation:

CCWOSE
Enclosure Type:

Totally Enclosed Air Over (TEAO)
RPM:

1550
Mount:

Extended Shaft
Bearings:

Ball
Speeds:

1
Phase:

1
Hertz:

50/60
Duty:

Continuous Air Over
Insulation Class:

B
Poles:

4
Motor Orientation:

Horizontal Or Shaft Down
Approvals:

CSA

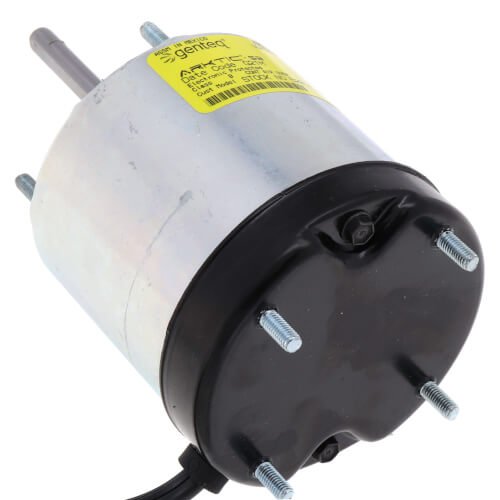

Arktic 59 Energy Efficient Motor for Walk-In Evaporator Applications (208-230v)

Description

The Arctic 59 is designed primarily for use in the evaporator of commercial refrigeration walk-in coolers and freezers, but can be used in many air-moving applications demanding high efficiency and dependability with output ratings up to 74.6 watts.

  • RoHS compliant 3.3″ diameter electronically commutated motor
  • 5/16″ shaft diameter and shaft water slinger
  • 24″ cord set attached to motor
  • Horizontal – vertical down orientation desired
  • Totally enclosed, Non-vented (air-over ECM required)
